Evolution characteristics and genesis of fault-structure in the eastern Andaman Sea depression since the Oligocene

Yan Heng; Luan Xiwu; Li Zhenchun; Ye Chuanhong; Wei Xinyuan; He Huarui

doi:10.12284/hyxb2022067

Volume 44 Issue 9

Aug. 2022

Turn off MathJax

Article Contents

Article Navigation > Haiyang Xuebao > 2022 > 44(9): 87-99

Yan Heng，Luan Xiwu，Li Zhenchun, et al. Evolution characteristics and genesis of fault-structure in the eastern Andaman Sea depression since the Oligocene[J]. Haiyang Xuebao，2022, 44(9)：87–99 doi: 10.12284/hyxb2022067

Citation:

PDF( 3641 KB)

Evolution characteristics and genesis of fault-structure in the eastern Andaman Sea depression since the Oligocene

doi: 10.12284/hyxb2022067

1.
School of Earth Science and Technology, China University of Petroleum (Huadong), Qingdao 266580, China
2.
College of Earth Science and Engineering, Shandong University of Science and Technology, Qingdao 266590, China
3.
College of Marine Geosciences, Ocean University of China, Qingdao 266100, China

Received Date: 2021-11-18
Rev Recd Date: 2022-02-09

Available Online: 2022-04-27

Publish Date: 2022-08-29

Abstract

Abstract

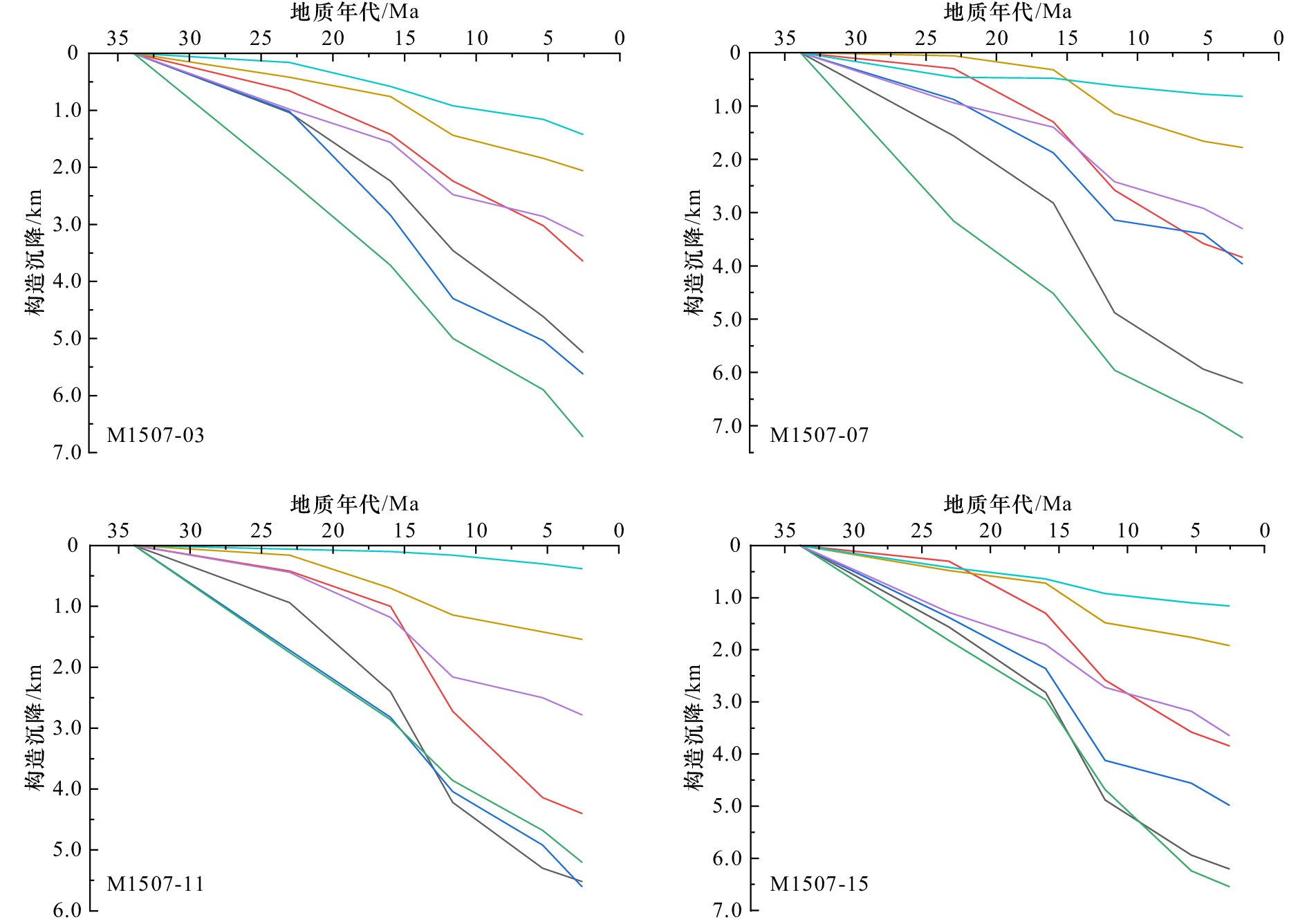

We deals with the tectonic evolution of the Andaman Sea, the northeastern margin of the Indian Ocean. Based on large-scale 2D seismic data and drilling data in the eastern Andaman Sea area, combined with regional geological survey and previous research results, eight representative faults were selected and divided into first-order and second-order faults. Growth index method and paleo-fall method were used to quantitatively analyze the faults. The tectonic evolution of the eastern Andaman Sea depression is discussed by calculating the tectonic subsidence of the four main survey lines. The results show that three of the selected growth faults are first-level faults with large span and almost cut through the whole stratum, which are large faults controlling the subsidence of the Andaman Sea area. The other five are secondary faults, controlling the distribution of the tectonic belt and belonging to the boundary of the tectonic belt. During the Oligocene, the Indo-Australian Plate and Eurasian Plate were in the stage of soft collision, with slow fault development, small overhanging and footrow drop, low growth index and tectonic subsidence. During the Miocene, the coupling effect between plates was strengthened, the fault development speed was accelerated, and the thickness of the upper and lower walls was the largest. It was the key period for the formation of multiple fault zones and various fault styles, and the growth index of various layers and the tectonic subsidence reached the peak. Since the Pliocene, the Andaman trench-arc-basin system has gradually stabilized, the fault activity has weakened, the thickness difference between the upper and lower wall of the fault is basically the same, the growth index difference is small, and the tectonic subsidence is basically stable at about 1 km.
- Andaman Sea,
- fault characteristics,
- growth index and drop analysis,
- tectonic subsidence history,
- discussion on fault origin

FullText(HTML)

References(32)

References

[1]	Diehl T, Waldhauser F, Cochran J R, et al. Back-arc extension in the Andaman Sea: tectonic and magmatic processes imaged by high-precision teleseismic double-difference earthquake relocation[J]. Journal of Geophysical Research: Solid Earth, 2013, 118(5): 2206−2224. doi: 10.1002/jgrb.50192
[2]	范桃园, 陈群策, 吴中海, 等. 青藏高原东缘活动构造与现今地应力场三维粘弹性模拟研究[J]. 地球物理学进展, 2013, 28(3): 1140−1149. doi: 10.6038/pg20130305 Fan Taoyuan, Chen Qunce, Wu Zhonghai, et al. 3D viscoelastic modeling on the present crustal stress of eastern Qingzang Plateau including active tectonics[J]. Progress in Geophysics, 2013, 28(3): 1140−1149. doi: 10.6038/pg20130305
[3]	Saha A, Mudholkar A V, Raju K A K, et al. Geochemical characteristics of basalts from Andaman subduction zone: implications on magma genesis at intraoceanic back-arc spreading centres[J]. Geological Journal, 2019, 54(6): 3489−3508. doi: 10.1002/gj.3345
[4]	Lu Yintao, Shi Boqing, Maselli V, et al. Different types of gravity-driven flow deposits and associated bedforms in the Upper Bengal Fan, offshore Myanmar[J]. Marine Geology, 2021, 441: 106609. doi: 10.1016/j.margeo.2021.106609
[5]	Pandey D K, Anitha G, Prerna R, et al. Late Cenozoic seismic stratigraphy of the Andaman Forearc Basin, Indian Ocean[J]. Petroleum Science, 2017, 14(4): 648−661. doi: 10.1007/s12182-017-0197-7
[6]	Curray J R. Tectonics and history of the Andaman Sea region[J]. Journal of Asian Earth Sciences, 2005, 25(1): 187−232. doi: 10.1016/j.jseaes.2004.09.001
[7]	Morley C K. Cenozoic structural evolution of the Andaman Sea: evolution from an extensional to a sheared margin[J]. Geological Society, London, Special Publication, 2016, 431: 39−61. doi: 10.1144/SP431.1
[8]	Mahattanachai T, Morley C K, Charusiri P, et al. The Andaman Basin central fault zone, Andaman Sea: characteristics of a major deepwater strike-slip fault system in a polyphase rift[J]. Marine and Petroleum Geology, 2021, 128: 104997. doi: 10.1016/j.marpetgeo.2021.104997
[9]	何文刚, 梅廉夫, 朱光辉, 等. 安达曼海海域盆地构造及其演化特征研究[J]. 断块油气田, 2011, 18(2): 178−182. He Wengang, Mei Lianfu, Zhu Guanghui, et al. Study on tectonic and evolution characteristics of basins in Andaman Sea[J]. Fault-Block Oil & Gas Field, 2011, 18(2): 178−182.
[10]	Zhou P X, Xia S H. Effects of the heterogeneous subducting plate on seismicity: constraints from b-values in the Andaman–Sumatra–Java subduction zone[J]. Physics of the Earth and Planetary Interiors, 2020, 304: 106499. doi: 10.1016/j.pepi.2020.106499
[11]	Jourdain A, Singh S C, Escartin J, et al. Crustal accretion at a sedimented spreading center in the Andaman Sea[J]. Geology, 2016, 44(5): 351−354. doi: 10.1130/G37537.1
[12]	冉伟民, 栾锡武, 邵珠福, 等. 东海陆架盆地南部生长断层活动特征[J]. 海洋地质与第四纪地质, 2019, 39(1): 100−112. Ran Weimin, Luan Xiwu, Shao Zhufu, et al. Research on characteristics of growth faults in the southern East China Sea shelf basin[J]. Marine Geology & Quaternary Geology, 2019, 39(1): 100−112.
[13]	雷宝华. 生长断层活动强度定量研究的主要方法评述[J]. 地球科学进展, 2012, 27(9): 947−956. Lei Baohua. Review of methods with quantitative studies of activity intensity of the growth fault[J]. Advances in Earth Sciences, 2012, 27(9): 947−956.
[14]	Khan P K, Chakraborty P P. Two-phase opening of Andaman Sea: a new seismotectonic insight[J]. Earth and Planetary Science Letters, 2005, 229(3/4): 259−271.
[15]	Gokarn S G, Gupta G, Dutta S, et al. Geoelectric structure in the Andaman Islands using magnetotelluric studies[J]. Earth, Planets and Space, 2006, 58(2): 259−264. doi: 10.1186/BF03353386
[16]	王嘉, 栾锡武, 何兵寿, 等. 珠江口盆地开平凹陷断裂构造特征与动力学机制探讨[J]. 海洋学报, 2021, 43(8): 41−53. Wang Jia, Luan Xiwu, He Bingshou, et al. Study on the structural characteristics and dynamic mechanism of faults in the Kaiping Sag of Zhujiang River Mouth Basin[J]. Haiyang Xuebao, 2021, 43(8): 41−53.
[17]	Luan X, Islam M S, Wei X, et al. Hydrocarbon accumulation in an active accretionary prism, a case study in the deepwater Rakhine Basin, Myanmar offshore[J]. Journal of Asian Earth Sciences, 2021, 221: 104941. doi: 10.1016/j.jseaes.2021.104941
[18]	Singha P, Dewangan P, Raju K A K, et al. Geometry of the subducting Indian plate and local seismicity in the Andaman region from the passive OBS experiment[J]. Bulletin of the Seismological Society of America, 2019, 109(2): 797−811. doi: 10.1785/0120180178
[19]	Mohan K, Dangwal S G V, Sengupta S, et al. Andaman Basin—a future exploration target[J]. The Leading Edge, 2006, 25(8): 964−967. doi: 10.1190/1.2335164
[20]	栾锡武 . 东南亚构造分区[J]. 地球科学进展, 2022, 37(3): 1−32 Luan Xiwu. Southeast Asia tectonic division[J]. Advances in Earth Science: 2022, 37(3): 1−32
[21]	Bhat G R, Balaji S, Yousuf M, et al. Primary on fault paleoseismic evidences from trench investigation along the Bathubasti fault, South Andaman, India[J]. Journal of Seismology, 2020, 24(6): 1159−1173. doi: 10.1007/s10950-020-09942-3
[22]	谢楠, 姜烨, 朱光辉, 等. 缅甸Sagaing走滑断裂及对睡宝盆地构造演化的控制和影响[J]. 现代地质, 2010, 24(2): 268−272. doi: 10.3969/j.issn.1000-8527.2010.02.010 Xie Nan, Jiang Ye, Zhu Guanghui, et al. Evolution of the Sagaing strike-slip fault and its control of Shwebo basin structural evolution, Myanmar[J]. Geoscience, 2010, 24(2): 268−272. doi: 10.3969/j.issn.1000-8527.2010.02.010
[23]	Morley C K, Alvey A. Is spreading prolonged, episodic or incipient in the Andaman Sea? Evidence from deepwater sedimentation[J]. Journal of Asian Earth Sciences, 2015, 98: 446−456. doi: 10.1016/j.jseaes.2014.11.033
[24]	Jafri S H, Sarma D S, Khan T, et al. Geochemical characteristics of the Late Cretaceous radiolarian cherts from North Andaman Island, Bay of Bengal, India[J]. Journal of Earth System Science, 2020, 129(1): 103−110. doi: 10.1007/s12040-020-1368-2
[25]	Rangin C, Maurin T, Masson F. Combined effects of Eurasia/Sunda oblique convergence and East-Tibetan crustal flow on the active tectonics of Burma[J]. Journal of Asian Earth Sciences, 2013, 76: 185−194. doi: 10.1016/j.jseaes.2013.05.018
[26]	Raju K A K, Murty G P S, Amarnath D, et al. The west Andaman fault and its influence on the aftershock pattern of the recent megathrust earthquakes in the Andaman-Sumatra region[J]. Geophysical Research Letters, 2007, 34(3): L03305.
[27]	Khan P K, Shamim S, Mohanty M, et al. Myanmar-Andaman-Sumatra subduction margin revisited: insights of arc-specific deformations[J]. Journal of Earth Science, 2017, 28(4): 683−694. doi: 10.1007/s12583-017-0752-6
[28]	Sautter B, Pubellier M, Schlögl S K, et al. Exhumation of west Sundaland: a record of the path of India?[J]. Earth-Science Reviews, 2019, 198: 102933. doi: 10.1016/j.earscirev.2019.102933
[29]	Venkatesan M I, Ruth E, Rao P S, et al. Hydrothermal petroleum in the sediments of the Andaman Backarc Basin, Indian Ocean[J]. Applied Geochemistry, 2003, 18(6): 845−861. doi: 10.1016/S0883-2927(02)00180-4
[30]	Raju K A K, Ramprasad T, Rao P S, et al. New insights into the tectonic evolution of the Andaman Basin, Northeast Indian Ocean[J]. Earth and Planetary Science Letters, 2004, 221(1/4): 145−162.
[31]	Okal E A. The large Andaman islands earthquake of 26 June 1941: why no significant tsunami[J]. Pure and Applied Geophysics, 2019, 176(7): 2869−2886. doi: 10.1007/s00024-018-2082-8
[32]	Phoosongsee J, Morley C K, Ferguson A J. Quantitative interpretation of seismic attributes for reservoir characterization of Early-Middle Miocene syn- and post-rift successions (Songkhla Basin, Gulf of Thailand)[J]. Marine and Petroleum Geology, 2019, 109: 791−807. doi: 10.1016/j.marpetgeo.2019.07.001
